Test Reporting

FunTEST also offers extensive data report and management

There 3 major types of test reports you can utilize in FunTEST

1. PDF or CSV Report from each test run

   • Create a tab called REPORT within the test file

   • To populate it with test results from each run refer to the test cells from the TEST tab • In your test sequence export the REPORT sheet as PDF

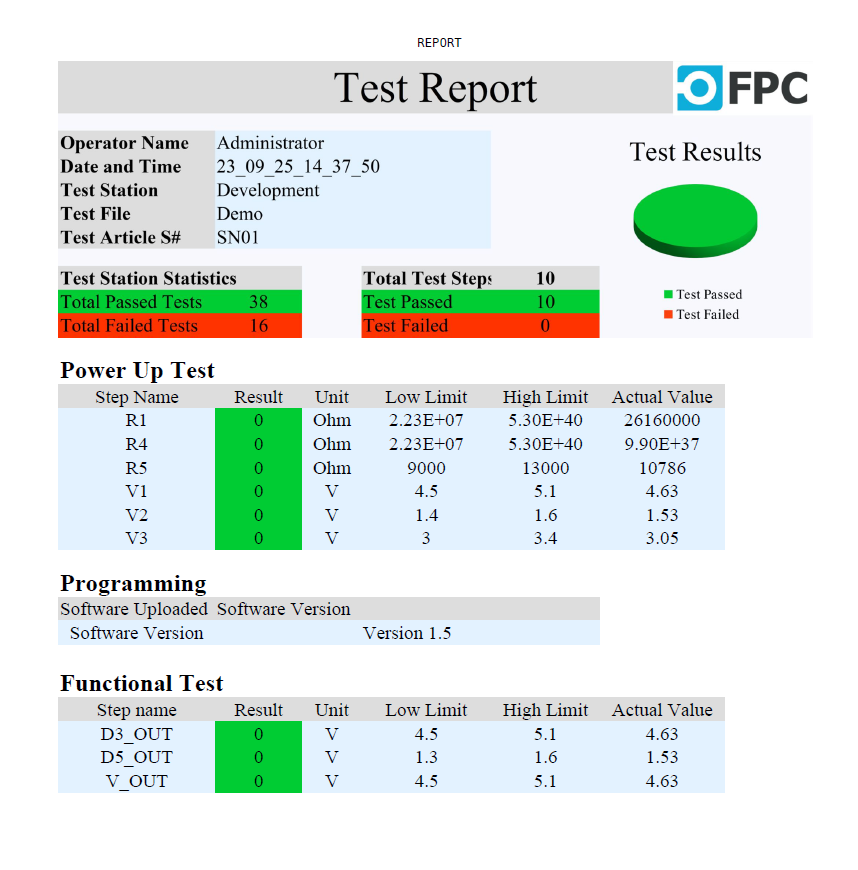

   PDF Test Report generated by FunTEST
2. Create Test Statistics

   • To create a single file that includes results from each run you can utilize the STAT tab

   • In the STAT tab refer to cells from TEST tab that you want to record from each test run.



   STAT tab definition

   • This will save these values and append them to a single CSV file where you can then perform analysis such as product-to-product variant etc... • You can tag create test reports for overall test station statistics

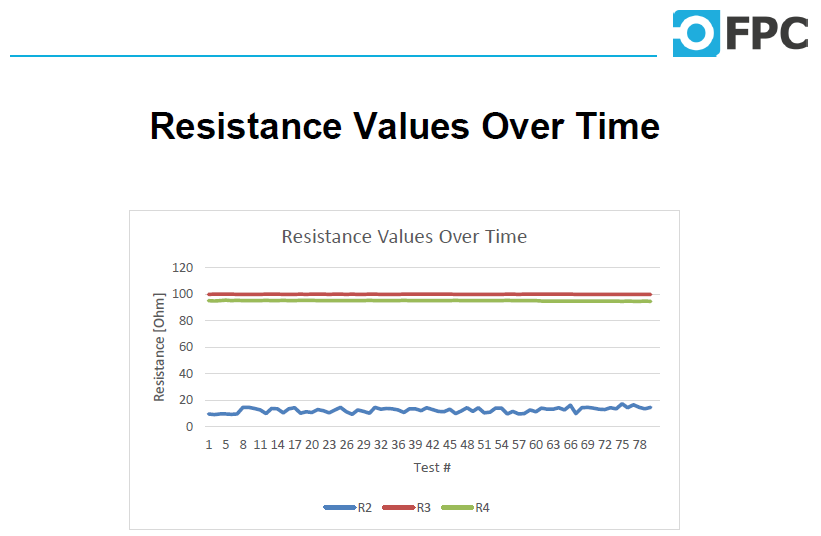

   Test Report monitoring resistance values from multiple tests
3. Upload Data to SQL Database

   You can also upload any test results automatically to SQL database.

SQL Database

To upload data to SQL database you need to have Database plugin. More info here Plugin Overview
